| 是否进口：否 | 产地：广东 | 品牌：品赞/G-Switch |
| 系列：品赞/G-Switch | 型号：GT-USB-7020 | 货号：GT-USB-7020 |
| 订货号：GT-USB-7020 | 产品认证：rohs | 是否跨境货源：否 |
Specification

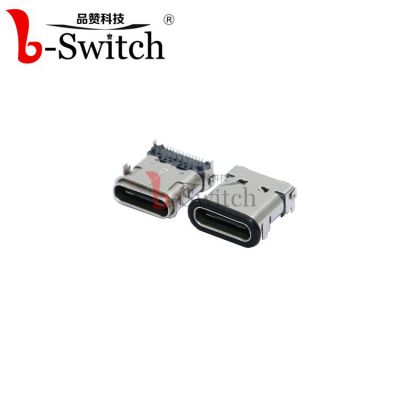

FUNCTION: CONN USB C TYPE 24PIN SMD
CONTACT ARRANGEMENT:USB C GEN1
Electrical
MAXIMUM VOLTAGE: *** FOR VBUS:
1.2*** FOR GND PIN锛�0.2*** FOR OTHER.
MAXIMUM CURRENT DC: 20V MAX
DIELECTRIC STRENGTH: 250 VA C (1mn)
CONTACT RESISTANCE: 鈮� 40 m惟
INSULATION RESISTANCE: 鈮� 100 M惟
WATER RESISTANCE锛欼PX7
MECHANICAL
INSERTION锛�5-20N
EXTRACTION锛�8-20N AFTER TEST
DURABILITY锛�10,000 CYCLES
Environmental
OPERATING TEMPERATURE: -25藲C to 85藲C
