| 是否进口：否 | 产地：广东 | 品牌：品赞/G-Switch |
| 型号：PS-22E08XX | 订货号：PS-22E08XX | 最高电压：12V |
| 额定发热电流：50MA | 接触电阻：100m Ω max. | 使用温度范围：-30℃to+85℃℃ |
| 绝缘电阻：100m Ω max.Ω | 产品认证：ROHS | 加工定制：否 |
| 货号：PS-22E08XX | 3C额定电压范围：440V以上 | 是否跨境货源：否 |
产品描述：

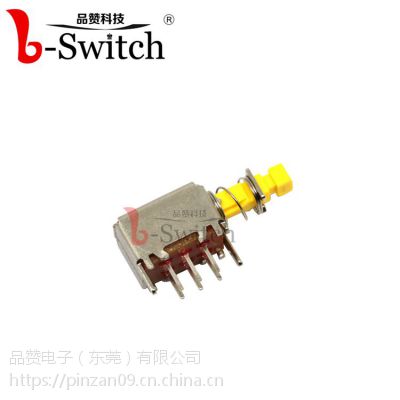

产品名称：按键开关
产品规格：13×6.7×8.8mm
产品高度：9.2mm
生产厂家：品赞/G-Switch
产品型号：PS-22E08XX
产品状态：N=无锁、L=自锁
按柄颜色：A=黑色、B=红色、C=红色、D=其它
产品寿命：10000次
基本参数：
工作温度范围Operating temperature range：-30℃to+85℃
额定电流Rating：50mA.12V DC
绝缘电阻Insulation resistance:：100MΩ min.100V DC
介电强度Dielectric strength： 250V AC for 1 min
接触电阻Contact resistance:：100m Ω max.
PS按键开关使用说明书:
| ITEM 项目 | TEST CONDITIONS 测试条件 | PERFORMANCE 规格 | ||
| 4.1 | CONTACT RESISTANCE 接触电阻 | MEASURED AT 1KHz SMALL CURRENT(100mA OR LESS) 在1KHz微小电流(100mA以下)测试. | 100mΩMAX. 100毫欧以下 | |
| 4.2 | INSULATION RESISTANCE 绝缘电阻 | APPLY A VOLTAGE OF 500V DC FOR 1 MIN. TO FOLLOWING PORTIONS AFTER WHICH MEASUREMENT SHALL BE MADE. (1)BETWEEN BODY AND TERMINAL。 (2)BETWEEN TERMINALS。 输入500V DC 电压1分钟,按以下接触方法测试: (1)排脚相互之间。 (2)排脚与外壳之间。 | 100MΩMIN. 100兆欧以上. | |
| 4.3 | DIELECTRIC STRENGTH 耐电压 | AC 500V rms(50-60Hz)FOR 1 MIN TRIP CURRENT:0.5mA (1)BETWEEN TERMINALS. (2)BETWEEN INDIVIDUAL TERMINAL AND FRAME. 输入AC 500V(50-60Hz)电压,1分钟感度电流为0.5mA, 按以下接触方法测试: (1)排脚相互之间 (2)排脚与外壳之间. | WITHOUT DAMAGETOPARTS ARCING OR BREAKDOWN ETC 没有绝缘破坏等异常 | |
| 5、MECHANICAL CHARACTERISTICS (机械性能规格) | ||||
| ITEM 项目 | TEST CONDITIONS 测试条件 | PERFORMANCE 规格 | ||
| 5.1 | OPERATING FORCE 作动力 | MEASUREMENT SHALL BE MADE AT THE NEAREST POINT OF THE COMPONENTOR AT THE POINT 3mm FROM THE TIP OF THE ACTUATOR(KNOB). 在距离胶柄前端3mm作测***. | 300gf±100gf | |
| 5.2 | TERMINAL STRENGTH 端子强度 | A STATIC LOAD OF(500gf)SHALL BE APPLIED TO THE TERMINAL FOR 15 SEC,IN ANY DIRECTON. 在排脚前端任意一个方向加500gf力度测试,时间为15秒. | MECHANICAL AND ELECTRICAL CHARACTERISTICS SHALL BE SATISFIED WITHOUT LOOSENESS OF ACTUATOU. 在端子中没有裂开,松动等异常, 满足于机械、电器性能。 | |
| 5.3 | DISPLACEMENT OF ACTUATOR (KNOB) 柄 强 度 | A STATIC LOAD OF 10N(1Kgf)SHALL BE APPLIED TO THE TOP OF THE ACTUATOR(KNOB)AND THEN DESPLACEMENT SHALL BE MEASURED TO THE DIRECTION OF THE ARROW. 在柄的前端施加1Kgf的力度,位移应沿印记的方向上定. | THE LEVER SHALL HAVE NO SERIOUS DEFORMATION AND FUNCTION IS NORMALLY. 柄部无严重变形,可以正常工作. | |
| 6、ENDURANCE CHARACTERISTICS (耐久性) : | |||
| ITEM 项目 | TEST CONDITIONS 测试条件 | PERFORMANCE 规格 | |
| 6.1 | LIFE TEST 寿命试验 | WITHOUT LOAD： AN ACTUATOR SHALL BE SUBJECT TO 10,000 CYCLES AT A SPEED OF 15 TO 18 CYCLES FOR 1 MIN. 无负荷: 操作者以每分钟15—18回的频率作10，000 回之无负荷测试. | (1) CONTACT RESISTANCE(接触电阻) 200mΩ MAX.200毫欧以下. (2) INSULATION RESISTANCE(绝缘电阻) 50MΩ MIN. 50兆欧以上. (3) WITHSTAND VOLTAGE(耐电压) AC 500V,1 MINUTE.AC 500V 1分钟 (4) OPERATING FORCE(作动力) ±30%INITIAL VALUE. 变化范围初始值±30% (5) WITHOUT DAMAGE TO PARTS ARCING OR BREAKDOWN ETC. (测试后外表无损伤,并且满足机械性能) |
| 6.2 | SOLDERA- BILITY TEST 可焊性试验 | THE TOP OF THE TERMINALS SHALL BE DIPPED 2mm IN THE SOLDER BATH OF 260±5℃ FOR 3±0.5 SECONDS. 端子顶部被浸入锡焊池中2mm深,温度为 260±5℃,时间为3±0.5秒. | THE AREA OF SOLDERING SHOULD BE OVER 75% 焊接面积要有75%以上. |
| 6.3 | RESISTANCE TO SOLDERING HEAT TEST 耐焊性试验 | (1)TEMPERATURE AND IMMERSING TIME 温度及浸锡时间 TEMPERATURE温度（℃）TIME时间（S）MANUAL SOLDERING 手 焊350±103±0.5(2)IMMERSION DEPTH: IMMERSION DEPTH UP TO THE SURFACE OF THE BOARD THICKNESS OF PRINTED WIRING BOARD 1.6mm. 浸锡深度： 浸锡深度至基板(PCB)表面，基板厚度为1.6mm. | THERE SHALL BE NO DEFORMATION OR CRACKS IN MOLDED PART. 外观无异常,满足于机械、电器性能。 |
| 6.4 | COLD TEST 耐冷试验 | THE SWITCH SHALL BE STORED AT A TEMPERATURE OF -25±3℃ FOR48HOURS. THEN THE SWITCH SHALL BE MAINTAINEDAT STANDARD ATMOSPHERIC CONDITIONSFOR 1 HOUR AFTER WHICH MEASUREMENTSHALL BE MADE. 放置在温度-25±3℃中48小时后,再将放置在常 温常濕的环境中1小时后进行测试. | |
| ITEM 项目 | TEST CONDITIONS 测试条件 | PERFORMANCE 规格 | |
| 6.5 | HEAT TEST 耐热试验 | THE SWITCH SHALL BE STORED AT A TEMPERATURE OF 70±2℃ FOR 48 HOURS. THEN THE SWITCH SHALL BE MAINTAINED AT STANDARD ATMOSPHERIC CONDITIONS FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. 放置在温度70±2℃中测试48小时后,再将放置在常温常濕的 环境中1小时后进行测试. | THERE SHALL BE NO DEFORMATION OR CRACKS IN MOLDED PART. 外观无异常,满足于机械、电器性能. |
| 6.6 | HUMIDITY TEST 潮濕试验 | THE SWITCH SHALL BE STORED ATA TEMPERATURE OF 40±2℃ AND A HUMIFITY OF 90% TO 95% FOR 96 HOURS.THEN THE SWITCH SHALL BE MAINTAINED AT STANDARD ATMOSPHERIC CONDITION FOR 1 HOUR AFTER WHICH MEASUREMENT SHALL BE MADE. 放置40±2℃的相对湿度为90%～95%环境中96小时后,再将放置在常温常濕的环境中1小时后进行测试. | |
| 6.7 | STANDARD ATMOSPHEIC CONDITIONS 测试标准状态 | UNLESS OTHERWISE SPECIFIED. THE STANDARD RANGE OF ATMOSPHERIC CONDITIONS FOR MAKING MEASUREMENTS AND TESTS ARE AS FOLLOWS: (1) AMBIENT HUMIDITY:5℃ TO 35℃ (2) RELATIVE HUMIDITY:45% TO 85% (3) AIT PRESSURE :86Kpa TO 106Kpa 在没有***的情况下测试温度、湿度、气压如下: (1) 温度为5℃—35℃. (2) 湿度为45%—85%. (3) 气压为86Kpa—106Kpa. | |
| 6.8 | PRACTICAL TEMPERATURE RANCE 使用温度范围 | -16℃～+60℃. 在-16℃～+60℃温度内使用. | |
